VERSUS M22 RB3 - Double Motor Control Panel with Radioband 3G Safety System
M22 single phase 2 motor configurable control canel with 3G Radioband safety system.

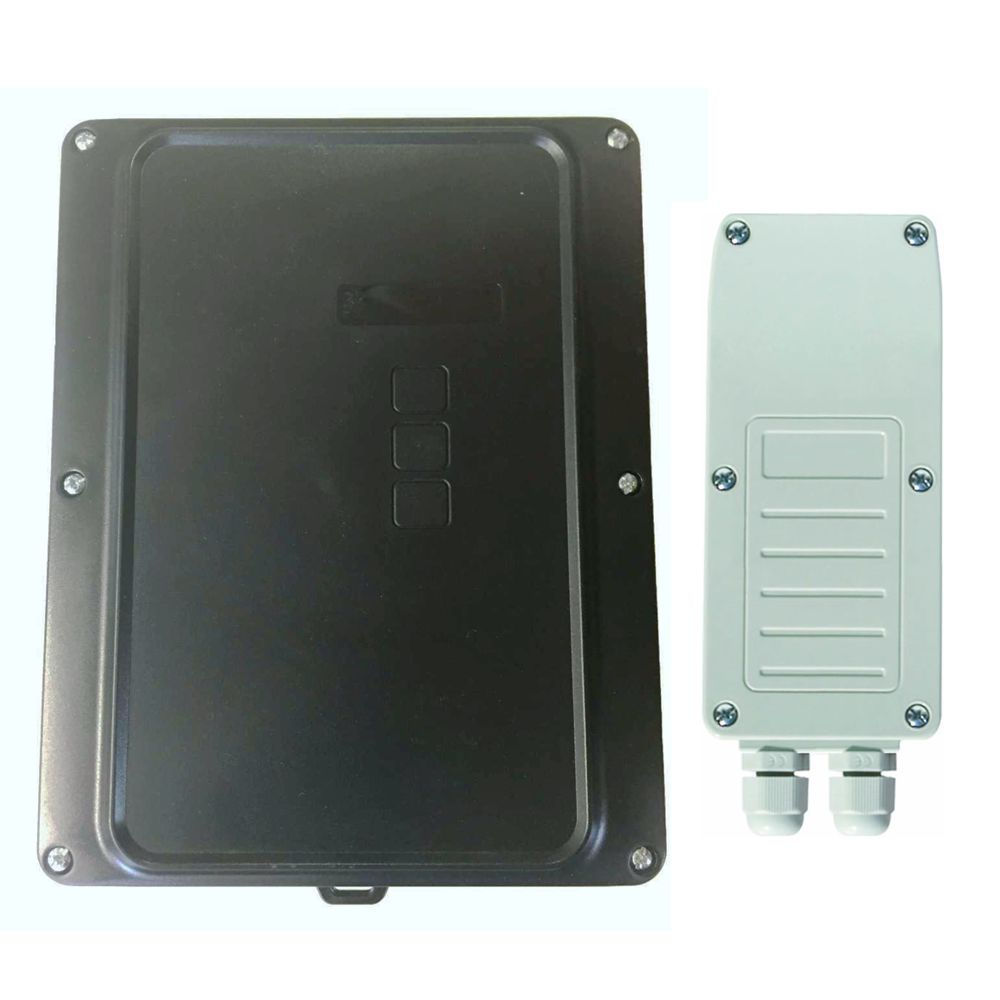

Kit includes M22 control panel, a plug in safety receiver, and a RB3 T868 safety transmitter which is suitable for connecting all types of safety edge including mechanical, resistive and optical. This kit allows you to provide control and wireless safety all in one box.
The control panel also features built in 868MHz radio receiver for handheld and wall mount wireless controls.
Details
VERSUS M22:
- Control panel for 2 single phase motors
- Power/Max.Power 230V/1200W
- Motor drive by relays with motor power regulation and soft stop.
- Built in 868MHz radio receiver for wireless controls. High security rolling code, cannot be cloned. 27 codes, expandable by 500 and can be managed by the ASSISTANT system if required.
- Expansion input for Radioband safety receiver card with a memory of up to 6 Radioband 3G safety transmitters or 1 Radiosens3 transmitter
- 9 independent inputs for safety beams, edges, push buttons, etc
- 2 configurable 6A contact outputs
- Configurable voltage outputs
- Compatible with potentiometer card, display and LCD
- PROG and START push buttons on panel to regulate automatic waiting time and independent open/close function.
- Optional built in buttons on the cover
- Optional built in courtesy light on the cover
- Status indicator by means of ERROR LED or display cards
- Operation counter for maintenance notification
Radioband 3G System:
The 3rd generation wireless Radioband is the most sophisticated and secure to date. It is compatible with all control panels on the market, and can be used with all types of edge, including our special always activated edge, standard low powered optical edge, resistive edge and electromechanical (NC) edge.
- On this system the receiver plugs directly into the control panel
- Smart adjustment of communication power between the receiver and the transmitter, providing a greater range than previous generations. Now 100 metres.
- The RB3 T868 transmitter features 2 independent inputs to enable the connection of 2 safety edges to the same transmitter. Depending on the position of the three selector switches, one or the other safety edge can be connected.
- Automatic management of the communication channel between the receiver and the transmitter. (Up to 4 self-adjusting channels 868MHz).
- Possibility of having the optical safety edge permanently activated without the need for a safety edge activation signal, in accordance with EN 13241-1.
- Low battery buzzer
- Up to 6 transmitters per receiver
